NSPGM2 series is a calibrated differential pressure sensor launched by NOVOSENSE for automotive fuel vapor pressure detection and exhaust differential pressure detection. The product adopts automotive-qualified signal conditioning chip to calibrate and compensate the precious metal MEMS die output, which can convert pressure signals in a specific range into analog output voltage. Its unique ceramic substrate packaging process makes the product resistant to oil vapor and other media corrosion, MEMS die is independent packaging and flexible design. This product can provide standard output in the temperature range from -40℃ to 130℃ without customer calibration, which can accelerate the process of product development and mass production. The module package is convenient for usage and flexible for multi-applications. It is not only suitable for automobiles fuel steam pressure detection and engine exhaust emission SCR system (National V and VI emission standards), but also suitable for industrial control and instrumentation and other fields.
• Operating temperature range: -40℃~130℃
• Pressure range ±5kPa~ ±100kPa, which can be customized
• The comprehensive accuracy in the full temperature range is better than ±2.5%F.S. (±0.18kPa)
• Support 5V power supply and direct power supply within 18V in absolute voltage output mode
• Support -24V to 28V over voltage and reverse voltage protection
• Fluorinated gel protection, compatible with oil and gas environment
• Support absolute output/proportional output, with output curve customized
• It can be calibrated many times, with the function of factory reset adjustment

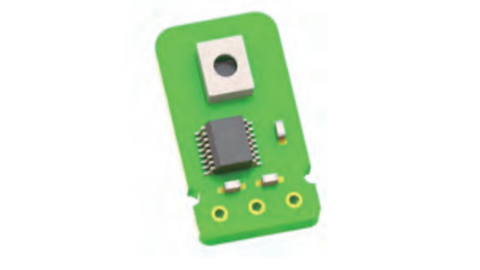

• Package: ceramic substrate module package (13.1mm x 23.1mm)
• Automotive: FTPS fuel steam pressure detection, GPF/DPF exhaust differential pressure detection, VBS vacuum boosting system sensor, EGR system differential pressure detection, crankcase ventilation pressure sensor
• Industrial: negative pressure vacuum detection, gas pressure monitoring
